Tightening the screw connections on the control link
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

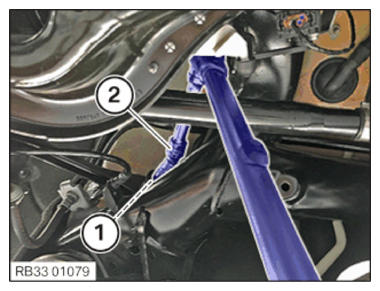

- Slacken nut (1) by one turn using standard tool (2). Provide counter support to the screw in the process.
- Tighten nut (1).

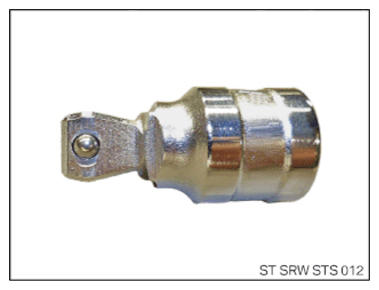

Standard tool: Pivoting extension 1/2 inch
Swivel extension 1/2 inch
Swivel extension 1/2 inch (2)

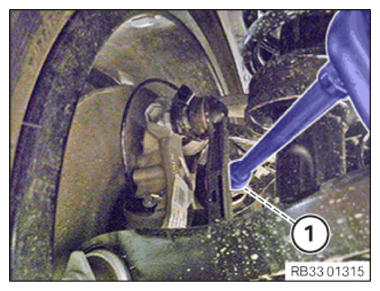

TIGHTENING TORQUE SPECIFICATIONControl arm to rear axle support M12 Replace screw and nut. Joining torque 100 Nm Tighten in normal position. Angle of rotation 90° - Slacken screw (1) by one turn.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Control arm to wheel carrier M14 Replace screw. Joining torque 165 Nm Tighten in normal position. Angle of rotation 90°
