Tightening the screw connection on the wheel carrier

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

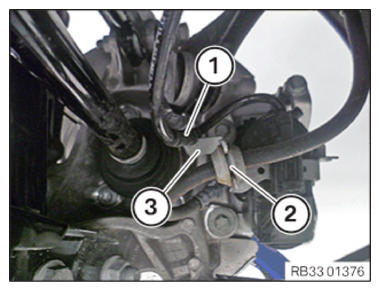

Detach the cable (1) for the electromechanical parking brake and brake hose (2) from the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

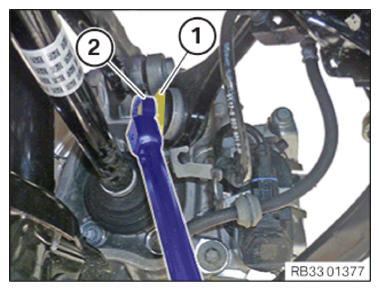

Release screw (1) using standard tool (2) with a turn and tighten it.

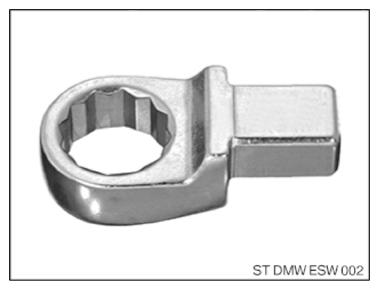

Standard tool: Ring insert tool for double hexagon head

Ring insertion tool for external double hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Ring insertion tool for external double hexagon

TIGHTENING TORQUE SPECIFICATION

Control arm to wheel carrier
M14 Replace screw.	Joining torque	165 Nm
Tighten in normal position.	Angle of rotation	90°

Fasten the cable (1) for the electromechanical parking brake and brake hose (2) on the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
