Tightening the control link on the rear axle support in normal position

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

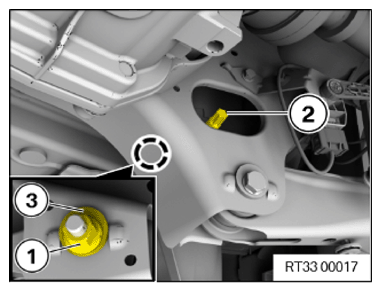

Release nut (1) one revolution.
Position the eccentric disc (3) correctly.

Use the eccentric screw (2) as a counter support and tighten the nut (1) to NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATION

Control link to rear axle support
M12 Replace the eccentric screw, eccentric washer and nut. Tighten in normal position.	Tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
