"Spider" dismantling system for bonded glazing

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 81 43 2 357 248

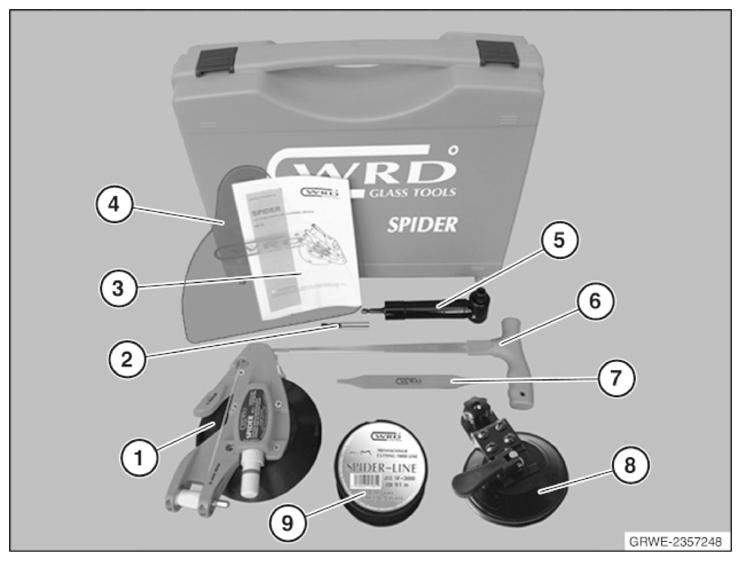

Scope of delivery:

"Spider" separation device
Bit holder
Owner's Manual
Dashboard protection
Angular transmission
Line threader
Line routing tool
Suction anchor

Line for separating adhesions

NOTE: The cord for separating adhesions and cord routing tool can be ordered individually as spare parts.

Order number	Spare part designation
81 43 2 344 272	Cord for separating adhesions
81 43 2 357 312	Line routing tool

TECHNICAL DATA DESCRIPTION

"Spider" separation device
Dimensions L xW x H	210x 155x54 mm
Suction blade 0	150 mm
Suction blade load capacity	approx. 62 kg
Suction anchor
Dimensions L xW x H	156 x 115 x 54 mm
Suction blade 0	115 mm
Suction blade load capacity	47 kg
Angular transmission
Dimensions L xW x H	170x60x25 mm
Gear ratio	1.285
Direction of rotation	left and right
Torque	maximum 60 Nm
Primary side connection external hex	6.3 mm
Secondary side connection hexagon socket magnetic	6.3 mm
Bit holder
Dimension L	60 mm
Line to separate bonding
Line length per coil	91 m
Line 0	0.8 mm
Line routing tool
Dimensions L xW x H	180 x 17 x 5 mm
Line threader
Dimension L	340 mm
Dashboard protection
Dimensions L xW x H	240 x 230 x 1.25 mm

Application:

See repair instructions REMOVING WINDOWS WITH A "SPIDER" .
