Securing the rear shock absorber on the body
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

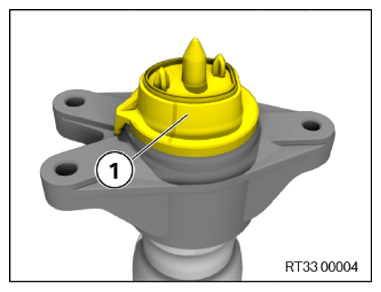

- Check the centering plate (1) for damage, replace if necessary.
- Check the position of centering plate (1) and, if necessary, correct it.WARNING: Car may slip off the vehicle hoist where components are supported .
Danger! Immobilization period-threatening injuries!- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

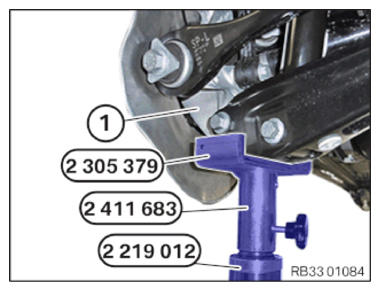

- Position special tool 2 219 012 with special tools 2 411 683 and 2 305 379 under wheel carrier (1).
- Lift the wheel carrier slightly using special tool 2 219 012 . Position the shock absorber on the body and do not press against the spring force of the coil spring.

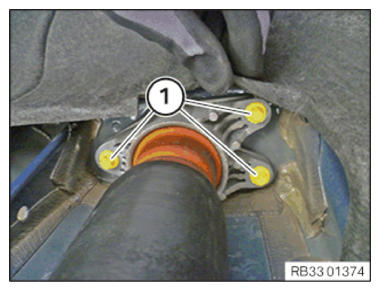

- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

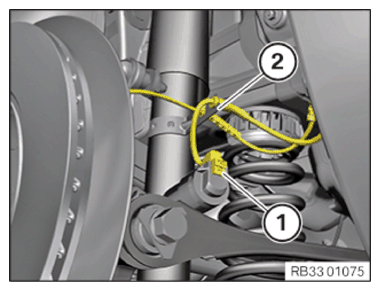

Nut and locknut/self-locking nut M8x40 Replace screws. Tightening torque 28 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Attach all the cables to holder (2).
- Connect connectors (1) and lock.
