Removing trim panels on the operating facility in the center console

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

Protect surfaces from damage.

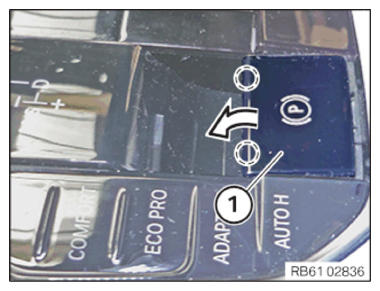

Press trim for the parking brake button (1) in the arrow direction, forward and downward.
NOTE: The trim of the parking brake button releases by forcefully pressing it out of the detents.

Courtesy of BMW OF NORTH AMERICA, INC.

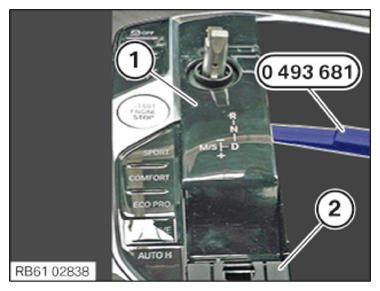

Lever out the trim (2) with the special tool 0 493 681 (64 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

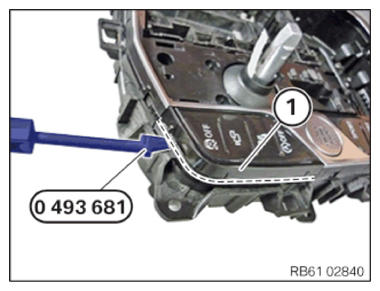

Lever out the trim (1) with the special tool 0 493 681 (64 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

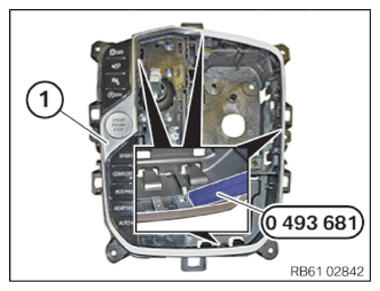

Lever out the trim (1) with special tool 0 493 681 (64 1 020) at the marked positions.

Courtesy of BMW OF NORTH AMERICA, INC.
