Removing the rear diffuser
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

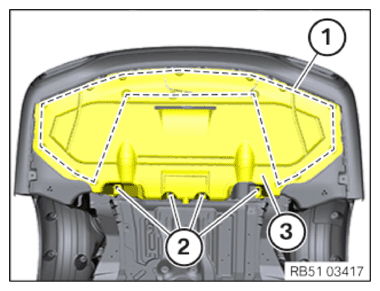

- Version A:
Loosen the screws along the dotted line (1).
Unscrew the nuts (2) and remove the diffuser (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

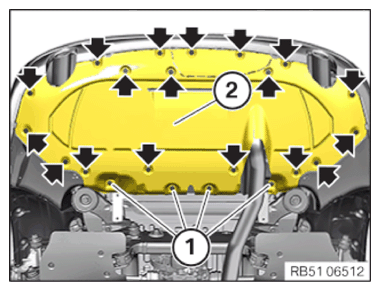

- Version B:
Remove screws (arrows).
Loosen nuts (1).
Guide out and remove the diffuser (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

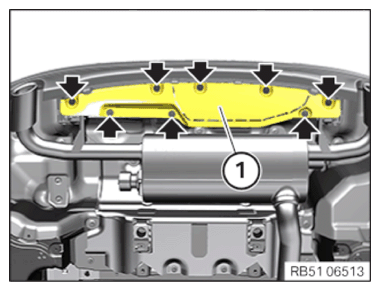

- Version C:
Remove screws (arrows).
Guide out and remove the diffuser (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
