Removing the mounting plate for the rear left and right grab handle
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Removing the mounting plate for the rear grab handle
NOTE:
RISK OF DAMAGE
Damage due to shavings.
Contamination can lead to malfunctions and damage.
Damage due to shavings.
Contamination can lead to malfunctions and damage.
- Cover working area.
- Draw off shavings during drilling using a vacuum cleaner.
NOTE:
Description is for left component only. Procedure on the right side is identical.

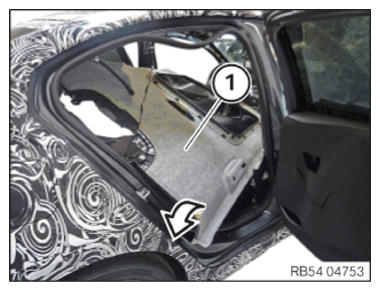

- Position headliner (1) in the vehicle in the arrow direction as shown so that there is place for drilling on the opposite side.

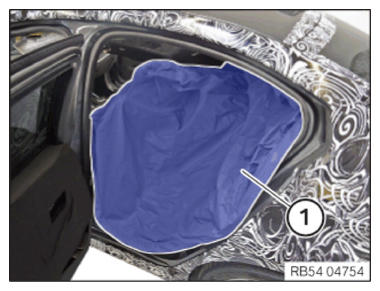

- Protect the working area against falling shavings with a suitable cover (1).NOTE: The operations shown only for one side must be carried out on both sides.

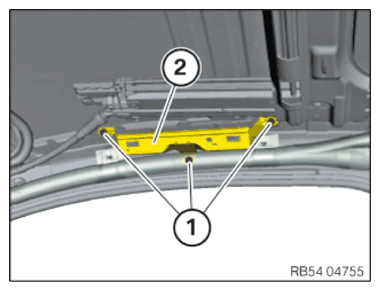

- Drill out blind rivets (1) and remove the rear holder (2).
Ensure that as little pressure as possible is used for drilling in order to avoid damage to the roof outer skin behind it!
