Removing the left and right door sill cover strips
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove door sill cover strip

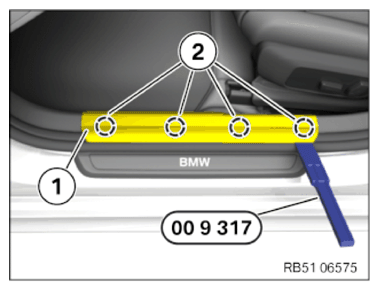

- Release the door sill cover strip (1) from the floor panel using the special tool 0 490 534 (00 9 317)
at the clips (2).

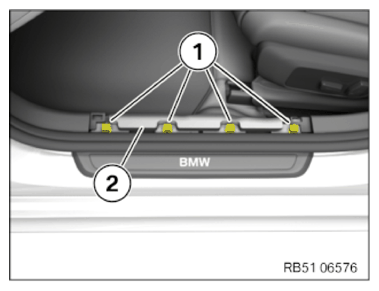

- If necessary remove the clips (1) from the floor panel (2) and insert onto the door sill cover strip.
