Removing the guide sleeve for the rear head restraint

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: The description is provided only at one component. The procedure is the same for all other components.

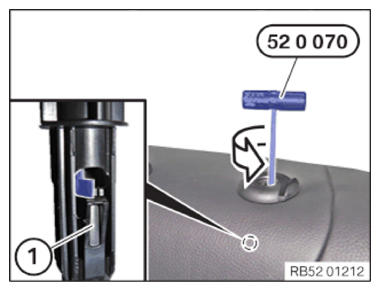

Push the detent (1) inward with the special tool 0 494 627 (52 0 070) .
Remove the guide sleeve towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.
