Removing the covers for the interior rearview mirror
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

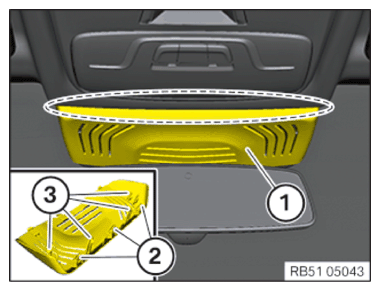

- Version A:
- Release cover (1) in the middle with a suitable plastic wedge from the latch mechanisms and remove.

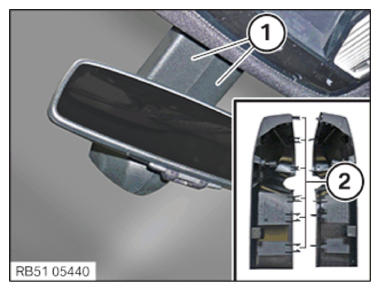

- Version B:
- Release the cover panel (1) from the detents (2) with a suitable plastic wedge and remove laterally.

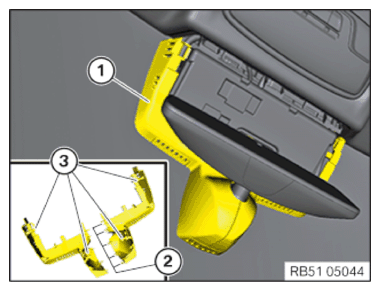

- Version C:
- Release cover (1) from the clamps (2) in the marked area using a suitable plastic wedge and pull down a certain distance.
- Release cover (1) at the retaining lugs (3) and remove from the guides to the rear.
- Release cover (1) from the detents (2) and (3) and remove sideways.
- Remove cover (1) from mirror base (2).

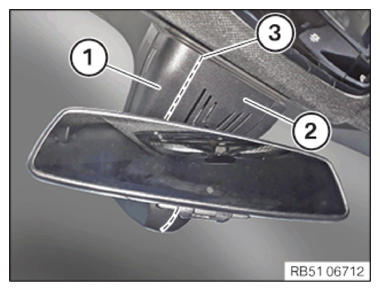

- Version D:
- Release covers (1) and (2) using a suitable plastic wedge at the separation point (3) and remove to the side.
