Removing the center armrest storage compartment trim
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

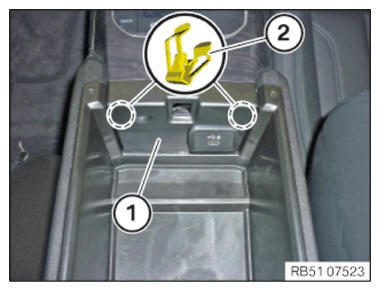

- Use the special tool 2 298 505
to lever out the trim (1) towards the rear out of the clamps (2).

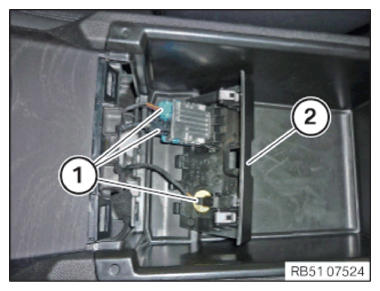

- Unlock and disconnect the plug connections (1) and remove the trim (2).
