Removing the cell module lid
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The cell module must be put down on the workbench. The workbench must be clean and free from oils and shavings.

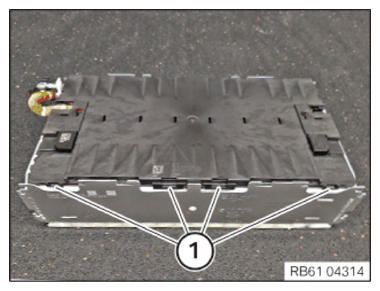

- Unclip lugs (1) with 2 298 505
and carefully remove the lid.

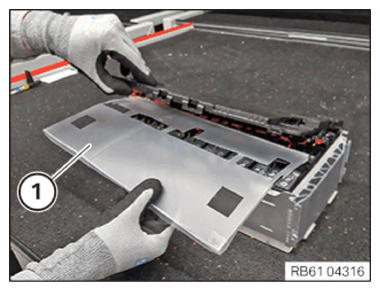

- Place the cover (1) from the scope of parts 8849422 on the cell module immediately after removing the lid.
- To prevent the lid from slipping, fix the lid with adhesive tape.CONSUMABLE DESCRIPTION
Adhesive tape 83192147666 Check

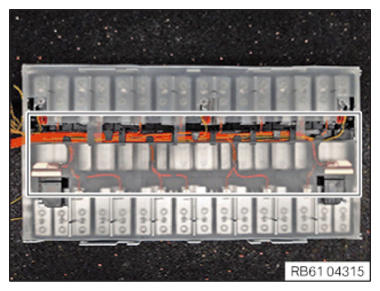

- Check the cell venting units for damage in the marked area.
Result
» You can continue if the cell degassing units are not damaged.
Measure
- If the cell venting units are damaged, the cell module must be replaced.
