Removing the backrest cover with the cushion
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

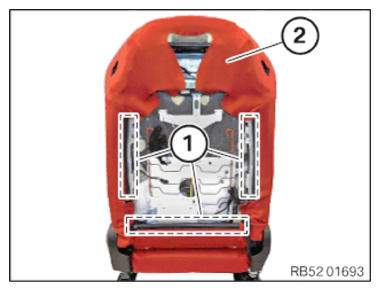

- Unclip the edge stripping (1) in the marked area with a suitable tool.
- Carefully detach the seat cover (2) from the backrest frame at all other attachment points.
Remove side airbag
- Loosen nuts (1).

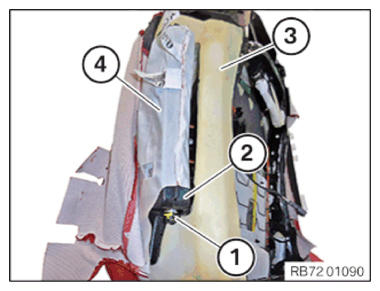

- Carefully fold out the side airbag (2) from the cushion (3).
- Carefully guide out the side airbag (2) from the pocket in the cover (4).
Ensure that the stud bolts of the side airbag (2) do not damage the pocket in the cover (4).
- Unlock and disconnect the plug connection (1) (observe additional information).

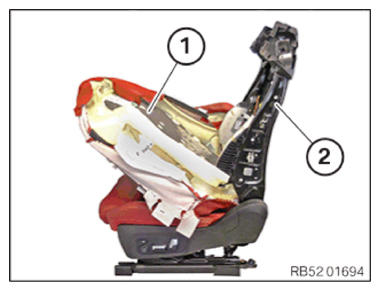

- Carefully detach seat cover with cushion (1) from seat frame (2).
- Unlock any existing plug connections and disconnect them.
