Removing the actuator from the hood hinge on the right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Pyrotechnic components .
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .

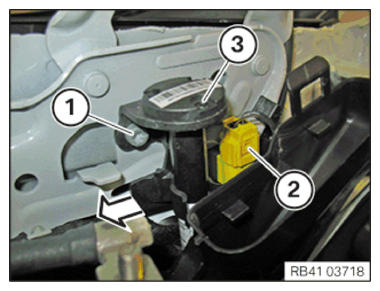

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Loosen screw (1).
Unlock plug connection (2) and disconnect.
Pull the actuator (3) slightly forwards in the arrow direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
