Removing the B-pillar trim panel at the bottom left and right
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the lower B-pillar trim panel

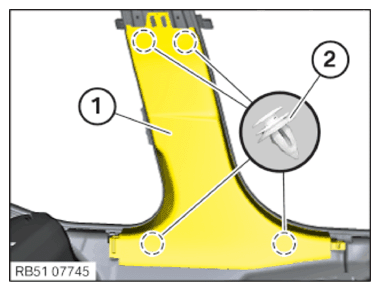

- Unclip the B-pillar trim panel (1) with the special tool 0 496 569 (00 9 325) on the clips (2).
- Feed out and remove the B-pillar trim panel (1) at the lip of the edge protection at front and rear.
