Removing seat cover with cushion for passenger seat
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

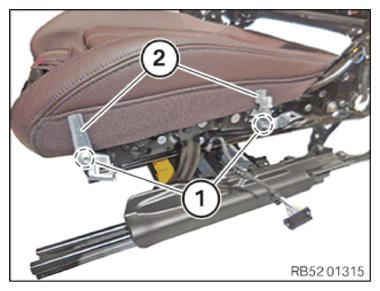

- Loosen screws (1) and remove holder (2).

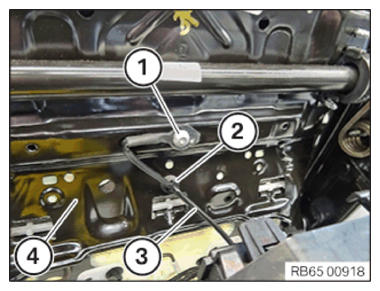

Releasing the ground cable of the seat occupancy mat (CIS)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Loosen screw (1).
- Loosen the cable clip (2).
- Remove the ground cable (3) for the seat occupancy mat from the seat mechanism (4).

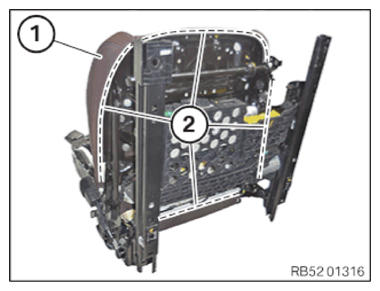

- Detach seat cover (1) in the areas (2).
- Thread out seat cover (1) with the cushion and remove.
- If necessary, disconnect existing plug connections and unclip cable clips.
