Removing rain-light-solar-condensation sensor
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

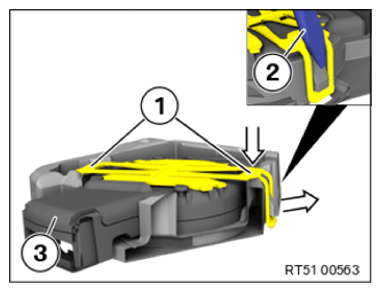

- Press in the retaining springs (1) on both sides in the arrow direction and unlock the lock by means of a screwdriver (2) in the arrow direction.NOTE: RISK OF DAMAGE
Damage to silicone surface.
A damaged silicone surface can lead to malfunctioning of the rain-light-solar-condensation sensor.- Do not tap or damage the silicone-coated surface on the rain-light-solar-condensation sensor.
- After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.
- Pull the rain-light-solar-condensation sensor (3) slowly off the windshield. In the process, pay attention from outside to the loosening of the silicone surface.
The silicone surface must evenly loosen from the windshield; if necessary, pull off slower.
- Guide out rain-light-solar-condensation sensor (3) from the holder.
When replacing the windshield, the rain-light-solar-condensation sensor must be installed on the new windshield.
