Remove the KAFAS camera
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

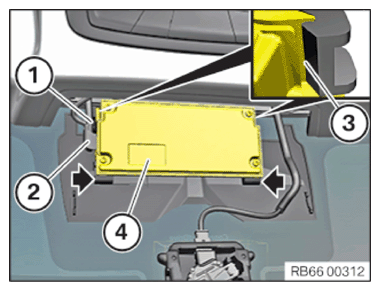

Remove KAFAS camera (Mid variant)
NOTE:
RISK OF DAMAGE
Improper unlocking of the KAFAS camera .
Damage to the retaining hooks of the KAFAS camera holder .
Improper unlocking of the KAFAS camera .
Damage to the retaining hooks of the KAFAS camera holder .
- Unlock the retaining hook with a suitable tool carefully .
- Unlock plug connection (1) and disconnect.
- Unlock plug connection (2) and disconnect.
- Unlock the snap-in lugs (3).
- Guide KAFAS camera (4) out at the guides (arrows) and remove.

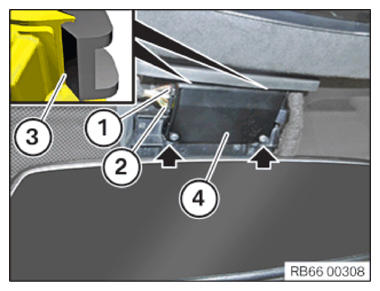

Remove the KAFAS camera (high-end version)
NOTE: RISK OF DAMAGE
Improper unlocking of the KAFAS camera .
Damage to the retaining hooks of the KAFAS camera holder .- Unlock the retaining hook with a suitable tool carefully .
- Unlock plug connection (1) and disconnect.
- Unlock plug connection (2) and disconnect.
- Unlock the snap-in lugs (3).
- Guide KAFAS camera (4) out at the guides (arrows) and remove.
