Releasing the rear left and right shock absorber from the body
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Releasing the rear shock absorber from the body
» NOTE
The following step(s) must be performed if the listed component(s) is/are installed.

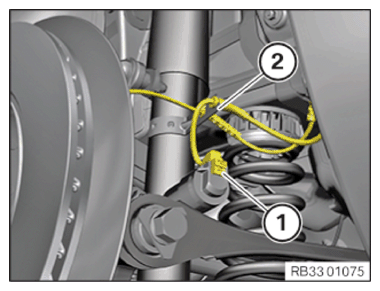

- Release all the cables from holder (2).
- Unlock plug connection (1) and disconnect.WARNING: Car may slip off the vehicle hoist where components are supported .
Danger! Immobilization period-threatening injuries!- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

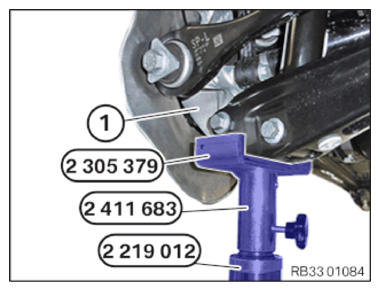

- Position special tool 2 219 012 with special tools 2 411 683 and 2305 379 under wheel carrier (1).
- Support wheel carrier (1) using special tool 2 219 012 and at the same time do not press against the spring force of the coil spring .
- Loosen screws (1).
- Disconnect the special tool 2 219012 and set it aside.
