Releasing the left or right output shaft from the rear axle differential
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Detach the output shaft from the rear axle differential
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

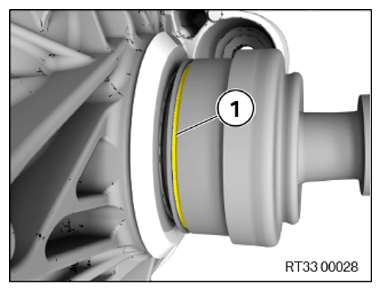

- Position the special tool described below at the circular groove (1) of the output shaft.

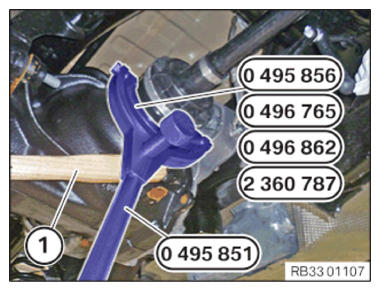

- Position the special tool 0 495 851 (33 5 120) with a suitable special tool 0 495 856 (33 5 124), 0 496 765 (33 5 126), 0 496 862 or 2 360 787 on the output shaft depending on its equipment specification.
- Support the special tool 0 495 851 (33 5 120)
with a standard tool (1) and press the output shaft out jerkily from the rear axle differential.
