Releasing the anti-roll bar link and wheel speed sensor from the wheel carrier
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

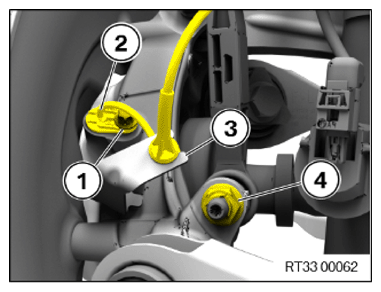

- Loosen screw (1).
- Release wheel speed sensor (2) from the wheel carrier.
- Press the control link slightly downwards.
- Release the nut (4).
Counter-hold at the Torx socket.
- Release the anti-roll bar link from the wheel carrier.NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Detach cable for wheel speed sensor from holder (3).
