Products for the repair of aluminum
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Products for the repair of aluminum
Product recommendation

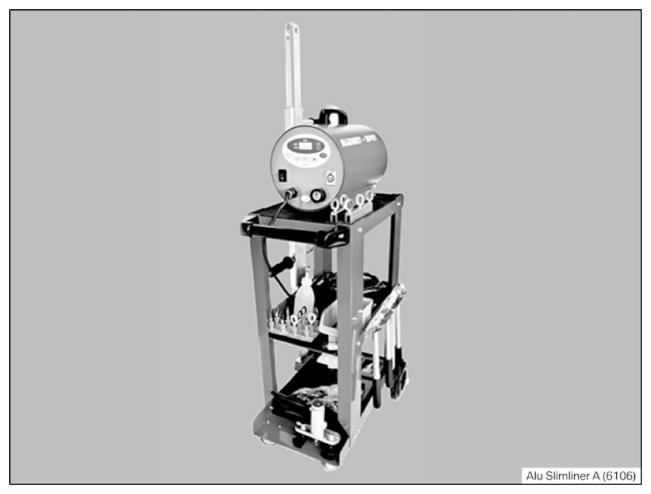

Alu Slimliner A (6106) with trolley

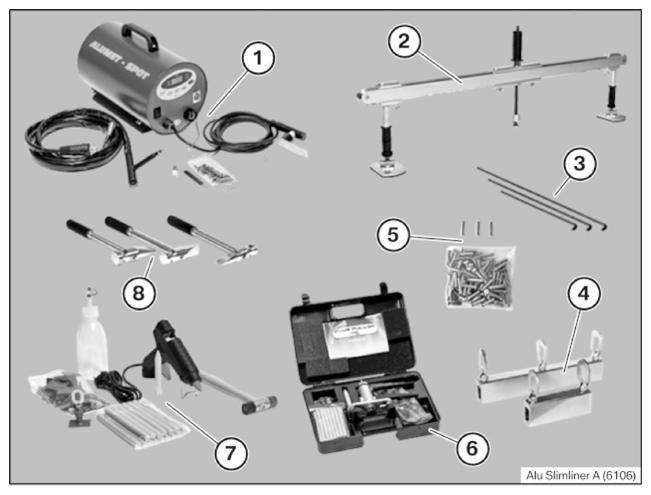

Scope of delivery "Alu Slimliner A (6106)" system:
- Alumet welder
- Pulling bridge
- Pulling bars
- Aluminum pulling elements
- Aluminum pulling pins
- "Glue Puller GP 2" (bonding tool set details see enclosure 3)
- "Power Knob Full Set" (bonding tool set details see enclosure 3)
- Hammer (vertical fin, horizontal fin)
- Slim trolley (trolley)

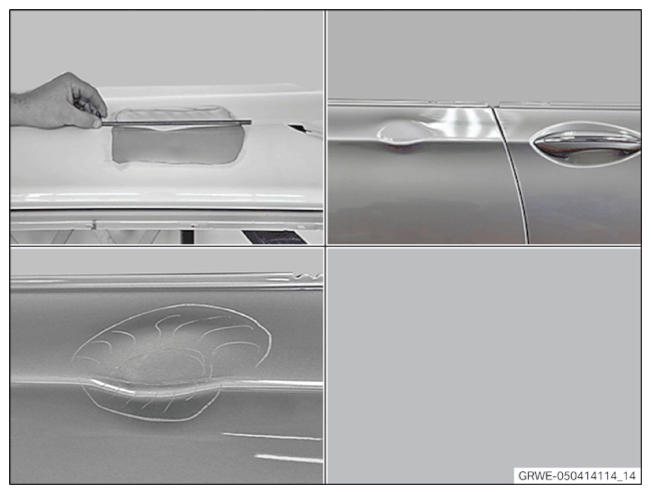

Several exemplary applications of body damage, which can be repaired with the "Alu Slimliner A (6106)" system will follow.
Several exemplary applications of the "Alu Slimliner A (6106)" system will follow.

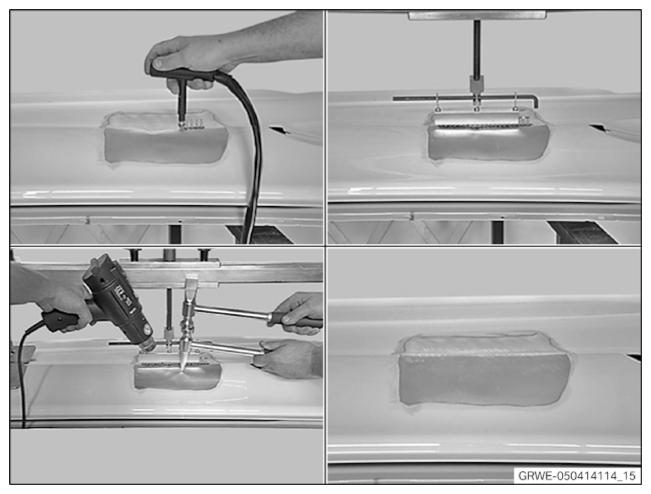

After the removal of the paintwork in the area of the damage, the pulling pins are welded to the aluminum outer skin with the electrode. With the help of the "pulling bridge", the damage is reshaped with a constant tug. This method results in a complete reshaping.
