Preserving the rear door
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

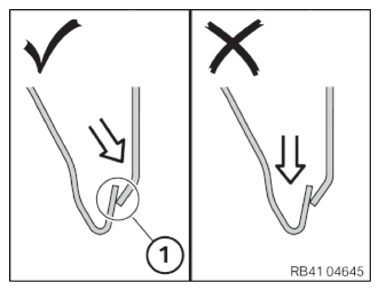

- The inner door panel is welded with the door outer skin in the area (1).
The weld seam must be protected against corrosion by cavity sealant.

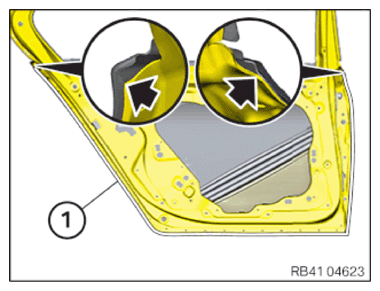

- Preserve the inner door panel in the area of the weld seam (1).
- Apply cavity sealant up to the two marked ends. Remove any cavity sealant which emerges.NOTE: To provide a better overview: Shown without door outer skin.

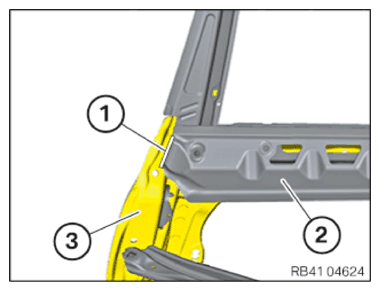

- Preserve the weld seams (1) all round between the reinforcement (2) and inner door panel (3).NOTE: To provide a better overview: Shown without door outer skin.

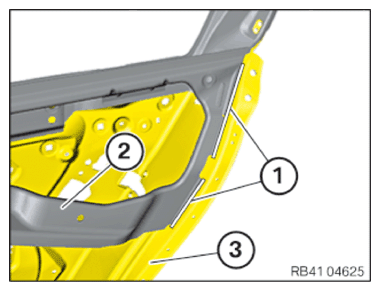

- Preserve the weld seams (1) all round between the reinforcement (2) and inner door panel (3).
