Preserving the front door
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Protect the weld seam from corrosion with the cavity sealant.

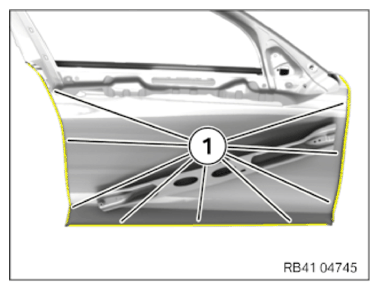

The Inner door panel Is welded with the door outer skin In the area (1).
NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Preserve the laser weld seam (1) between the Inner door panel and the door outer skin.
- Apply cavity sealant from the Inner all around. Remove any cavity sealant which emerges.
