Pinchweld scraper set
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Pinchweld scraper set
Order number: 81 62 0 410 436

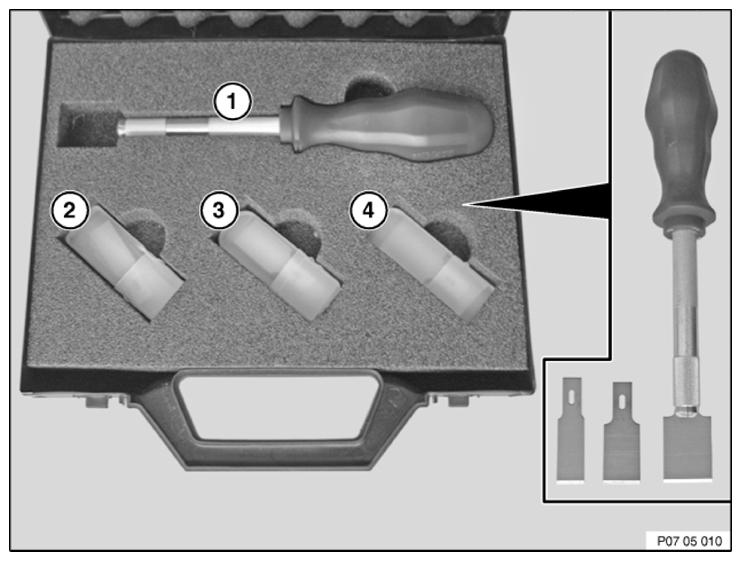

The pinchweld scraper set is delivered in-case and consists of:
- Handgrip for mounting the individual blades
- Blade set; 10 pcs. with blade width 12 mm
- Blade set; 10 pcs with blade width 16 mm
- Blade set; 10 pcs with blade width 20 mm
The individual blades are inserted into the handgrip and mounted on a knurled screw. The blades can be ordered separately (10 pcs per packaging and width).
Dimensions/weight of case:
- Lengths 240 x width 210 x height 450 in mm
- Weight approx. 380 g
Individual parts for re-order:
| Order number | Designation |
|---|---|
| 81 62 0 410 806 | Blade set 12 mm (10 pcs) |
| 81 62 0 410 807 | Blade set 16 mm (10 pcs) |
| 81 62 0 410 808 | Blade set 20 mm (10 pcs) |
