Perform EoS test
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Please comply with instructions in Owner's Manual.
Please comply with instructions in Owner's Manual.
NOTE:
Before using the EoS tester, make sure the most up-to-date firmware is installed.

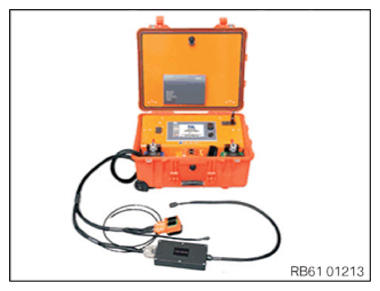

- Connect the special tool (EoS tester) 2 353 250 .
- If applicable, the following is required for the EoS tester adapter:
2 353 362
2 407 625
2 448 805
2 365 942
- Connect the connections of the special tool in the following sequence:
- Pressure connection
- high-voltage connection
- Power socket
- Start final test (EoS test).
- Note down the test result in ISTA or scan it into the data matrix code.
- Perform vehicle diagnosis.
