Partially removing the clutch master cylinder
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

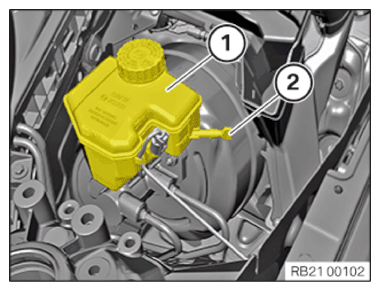

- Draw off brake fluid up to supply hose (2) of clutch hydraulic system. Use only a vacuum pipe that is exclusively used for removing brake fluid.
- Detach the supply hose (2) from the expansion tank (1).

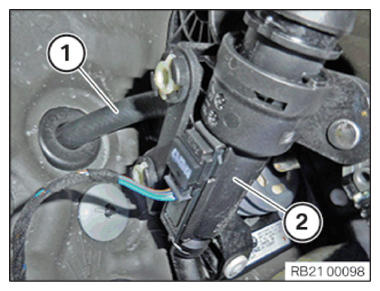

- Pull off the supply hose (1) from the clutch master cylinder (2), however do not completely pull it into the vehicle interior.

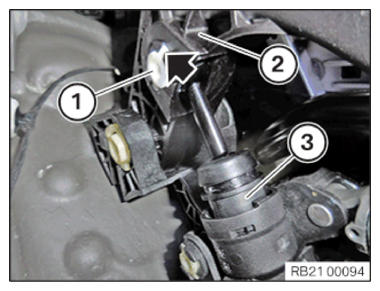

- Turn bolt (1) through 90° counterclockwise.
Lug (arrow) is turned after this through 90° counterclockwise.
- Remove bolt (1).
- Remove clutch master cylinder (3) from the clutch pedal (2).

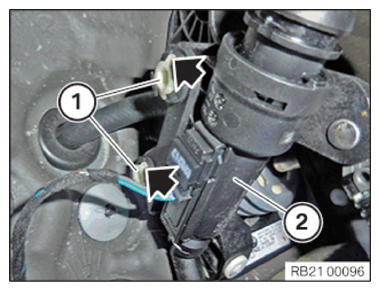

- Turn bolt (1) through 90° counterclockwise.
Lugs (arrow) are turned after this through 90° counterclockwise.
- Remove bolt (1).
- Remove the clutch master cylinder (2).
