Partially removing the air conditioning compressor

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Residual pressure in the heating and air conditioning system.
Injury hazard!

Wear safety goggles and protective gloves when disconnecting the refrigerant line.
Close the refrigerant lines with seal plugs.

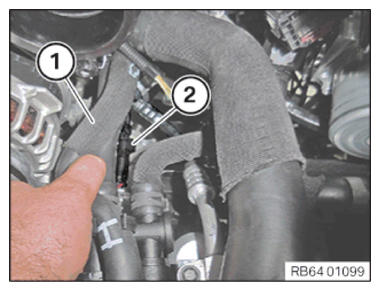

Slide the coolant hose (1) slightly to the side.
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

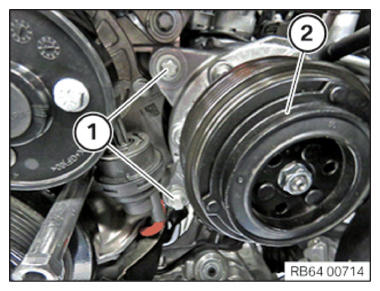

Loosen screws (1).
Detach the air conditioning compressor (2) from the component carrier and protect it from falling.
NOTE: Tie the air conditioning compressor up.

Courtesy of BMW OF NORTH AMERICA, INC.
