Partially installing the front wheel speed sensor

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

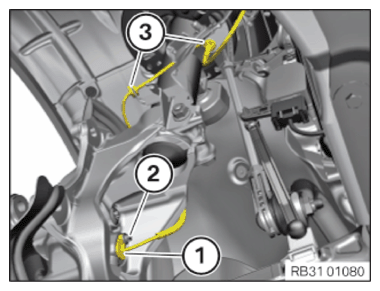

Position the wheel speed sensor on the spring strut.
Attach the cable of the wheel speed sensors on the brackets (3).
Position the wheel speed sensor (1) on the swivel bearing.
Replace the screw (2).
Parts: Screw

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

Wheel RPM sensor to swivel bearing
M6 Replace screw.	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
