Partially installing the backrest covering with the cushion for the front seat
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

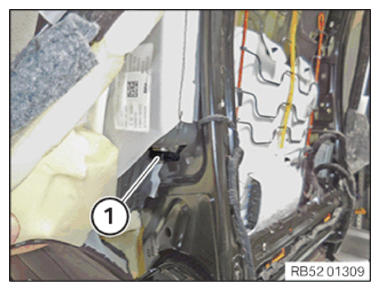

- Attach holder (1).

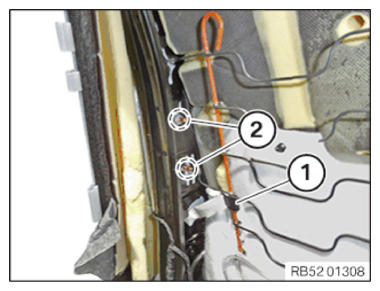

- Replace nuts (2).
Parts: Nuts
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATION
Airbag on the backrest frame Nut Replace nut. Tightening torque 6.5 Nm - Connect plug connection (1) and lock.

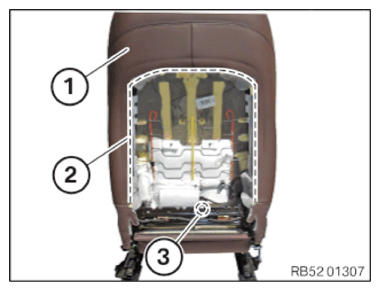

- Attach the backrest cover (1) in this area (2).
- Connect plug connection (3) and clip it into the existing cable brackets.
