Installing the trims on the operating facility in the center console

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

Protect surfaces from damage.

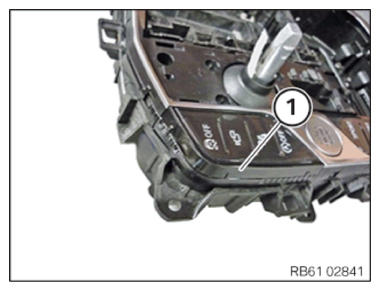

Position trim (1) on the operating facility in the center console (2) and engage.
All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

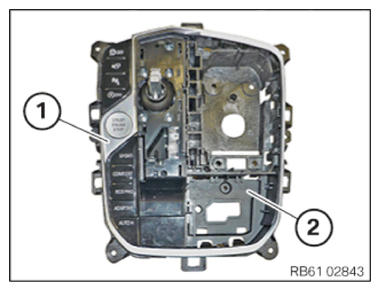

Position trim (1) and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.

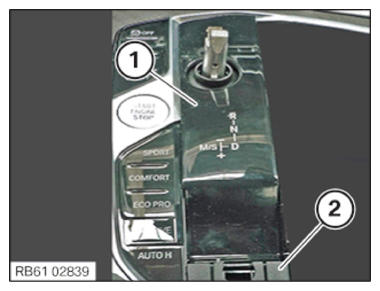

Position trim (1) on the operating facility in the center console (2) and engage it.
All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

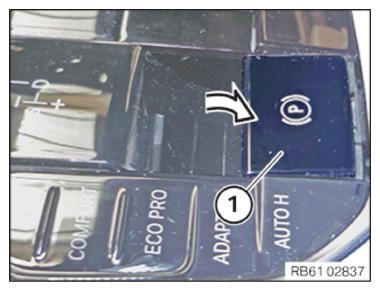

Position the trim (1) for the parking brake button and lock in place in the arrow direction.
The trim of the parking brake button (1) must lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
