Installing the trim in the water channel on the left and right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the trim in the water channel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check

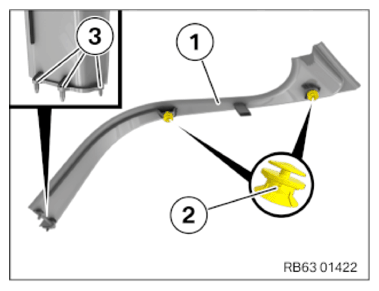

Check the clips (2) for damage and replace them if necessary.
Check guides (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guides are damaged.

Measure
- Replace the trim.
Parts: trim

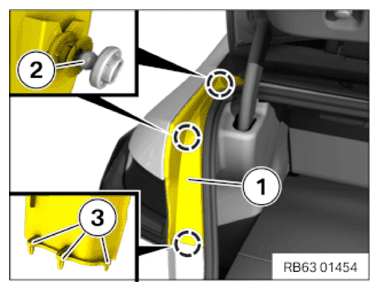

Insert the trim (1) into the guides (3).
Clip the trim (1) into the ball hubs (2) from above.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the trim in the water channel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check

Check the clips (2) for damage and replace them if necessary.
Check guides (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guides are damaged.

Measure
- Replace the trim.
  Parts: trim
Insert the trim (1) into the guides (3).
Clip the trim (1) into the ball hubs (2) from above.

Courtesy of BMW OF NORTH AMERICA, INC.
