Installing the left and right backrest side section
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install backrest side section
Installing the backrest side section with the side airbag
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

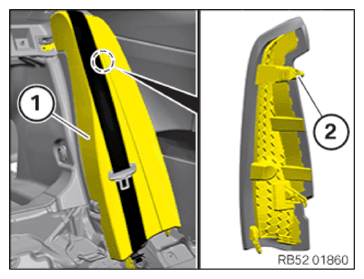

- Insert the backrest side section (1) into the guide at the bottom and position it correctly.
- Clip in the backrest side section (1) on the mounting element (2).
- Replace screws (3).
Parts: Screws
- Tighten the screws (3).TIGHTENING TORQUE SPECIFICATION

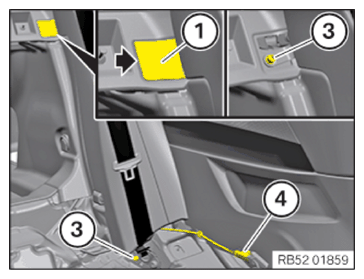

Backrest side section with side airbag M6x20 Replace screw. Tightening torque 8 Nm - Clip in the trim (1) (arrow).
- Connect connectors (4) and lock.
The connector must engage audibly.

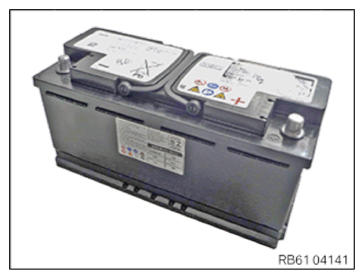

Disconnecting all battery ground leads
- See NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY
.
Activating the 48 V electrical system
Precondition
Ignition is switched off.
NOTE: RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.
- Raise the battery ground cable (1).

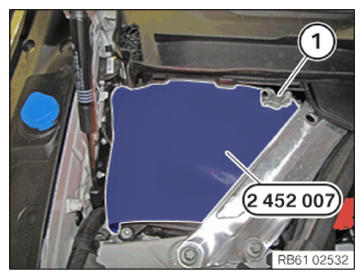

- Remove special tool 2 452 007
.

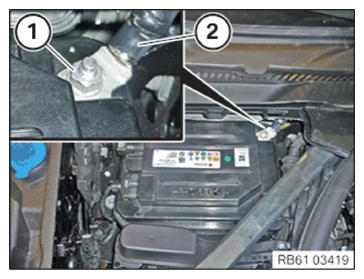

- Release the negative battery cable (2) of the 48-V battery from the attachment.
- Position the negative battery cable (2) of the 48-V battery on the negative battery terminal.
- Tighten the nut (1).TIGHTENING TORQUE SPECIFICATION

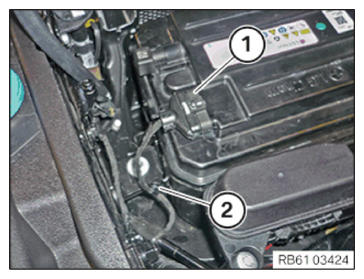

Negative battery cable to 48-V battery Nut M8 Tightening torque 19 Nm - Connect the connector (1) of the CAN bus and lock it.
- Clip in the clip (2).

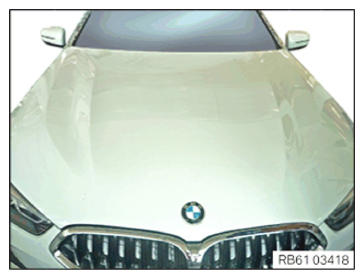

- Activate the 48 V electrical system by closing the hood.
The activation takes place automatically.
