Installing the heat shields
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

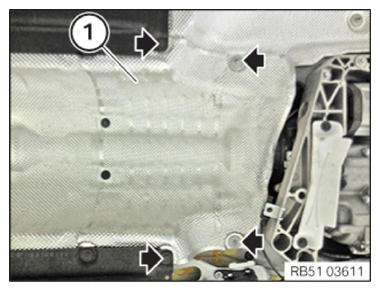

- Install heat shield (1).
- Tighten nuts and screws (arrows).TIGHTENING TORQUE SPECIFICATION

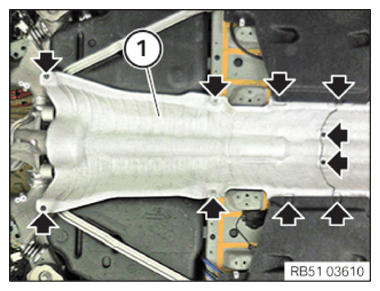

Heat shield to underbody Nuts and screws Tightening torque 3 Nm - Install heat shield (1).
- Tighten nuts and screws (arrows).TIGHTENING TORQUE SPECIFICATION
Heat shield to underbody Nuts and screws Tightening torque 3 Nm
