Installing the guide sleeve for the rear head restraint

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

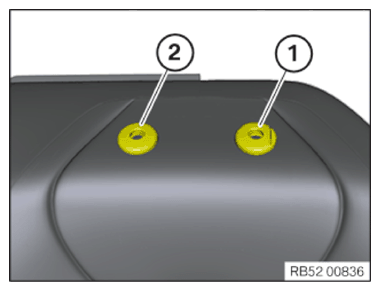

Observe installation location .
The guide sleeve with visible unlocking (1) must be on the left in the driving direction.

The guide sleeve without visible unlocking (2) must be on the right in the driving direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The description is provided only at one component. The procedure is the same for all other components.

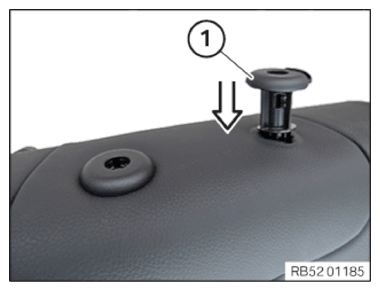

Insert the guide sleeve (1) into the rear seat backrest from above and lock it in place.
The guide sleeve (1) must snap-in noticeably.

Courtesy of BMW OF NORTH AMERICA, INC.
