Installing the backrest covering with the cushion
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

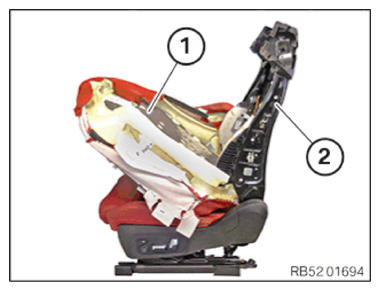

- Position the backrest covering with cushion (1) on the backrest frame (2) as shown.
- Connect and lock the plug connections, if any.
Installing the side airbag

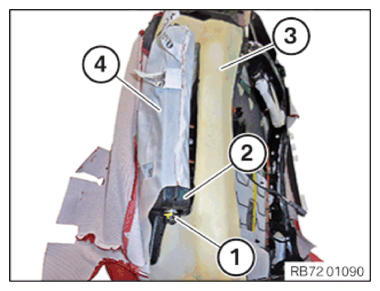

- Position the cushion (3) correctly.
- Carefully feed the side airbag (2) into the pocket in the cover (4).
Ensure that the stud bolt of the side airbag (2) does not damage the pocket in the cover (4).
- Correctly position the side airbag (2) in the cushion (3).
- Connect and lock the plug connection (1) (observe additional information).

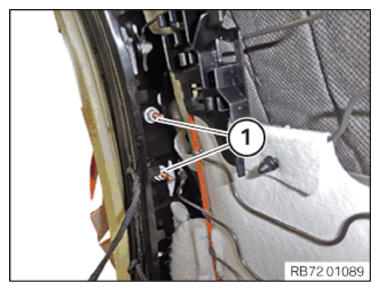

- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATION
Airbag on the backrest frame Nut Replace nut. Tightening torque 6.5 Nm - Position the seat cover (2) correctly and hook at all attachment points.

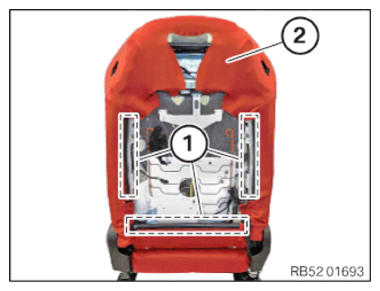

- Clip in the edge stripping (1) in the marked area.
