Installing the actuator on the right hood hinge

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

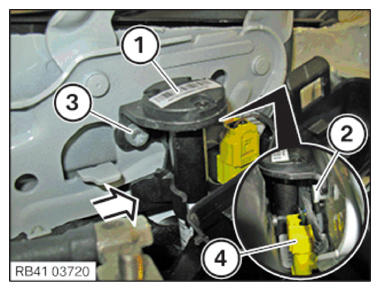

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Feed in the actuator (1) at the guide pin (2) and slide to the back in arrow direction up to the stop.
Replace the screw (3).
Parts: Screw

Tighten down screw (3).

TIGHTENING TORQUE SPECIFICATION

Actuator to engine compartment lid hinge
M6x12 Replace screw.	Tightening torque	8 Nm

Connect connectors (4) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
