Installing luggage compartment wheel arch trim panel left and right partially
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Partially installing the Install luggage compartment wheel arch trim panel on left
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

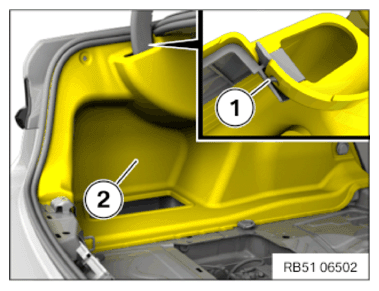

- Feed luggage compartment wheel arch trim panel (2) under the sealing lip of the tailgate seal In the rear area.
- Feed the lug of the luggage compartment wheel arch trim panel (2) In at the outer side of the hinge in the lock on trim (1).

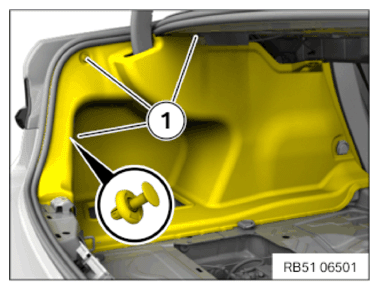

- Secure expanding rivet (1).
Partially installing the Install luggage compartment wheel arch trim panel on right

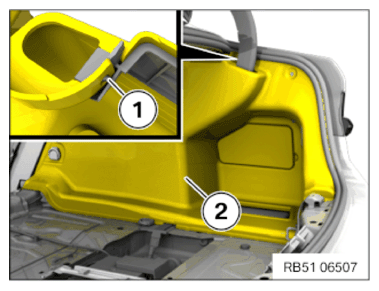

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Feed in the luggage compartment wheel arch trim panel (2) in the rear area below the sealing lip of the tailgate seal.
- Feed in the lug of the luggage compartment wheel arch trim panel (2) on the outer side of the hinge in the lock on the trim (1).

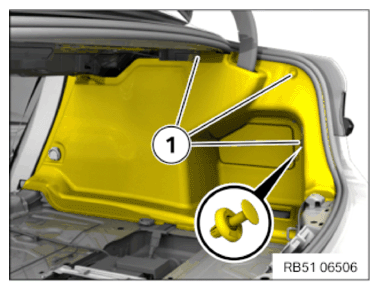

- Secure expanding rivet (1).
Installing the emergency release handle for the tailgate (additional work for US version)

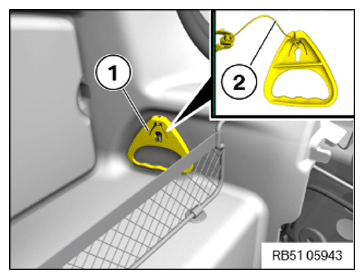

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Attach the Bowden cable (2).
- Fasten the emergency release handle (1) for the tailgate to the holder.
