Installing left and right gutter strip on the windshield
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing gutter strip on the windshield
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage .
Careless handling of tools and sharp-edged components. Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.
- Replace gutter strip on the windshield (1). Paint if necessary.
Parts: Gutter strip

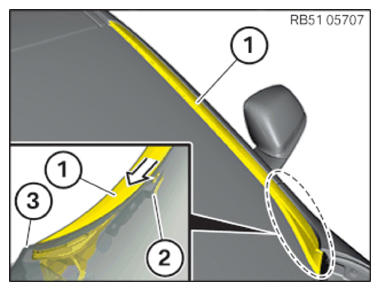

- Feed in the gutter strip on the windshield (1) carefully at the side panel (3) and insert it into the guide (2) in the arrow direction at the same time.

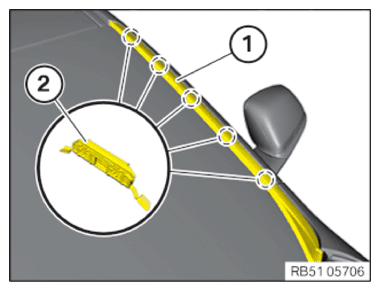

- Clip the gutter strip on the windshield (1) into the clamps (2), starting at the bottom.
