Installing left and right coil spring

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

Install the coil springs

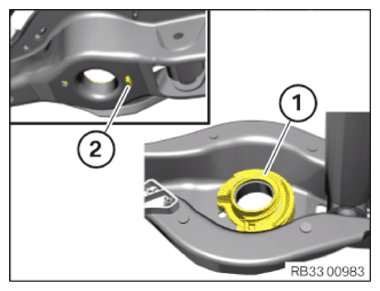

Check lower spring pad (1) for damage, replace if necessary.
Check the position of the lower spring pad (1) with the plastic tab (2) on the camber control arm, correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

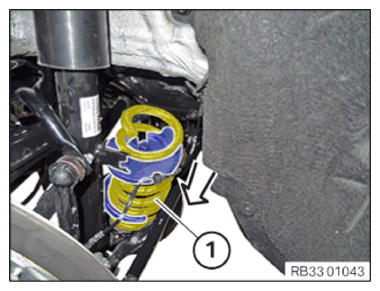

Insert the coil spring (1) in arrow direction from above and position it.

Courtesy of BMW OF NORTH AMERICA, INC.

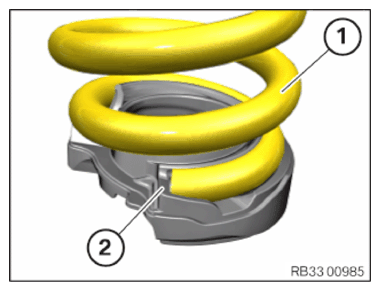

Position the coil spring (1) in such a way that the coil spring end is in form-fit contact with the lower spring pad (2).

Courtesy of BMW OF NORTH AMERICA, INC.

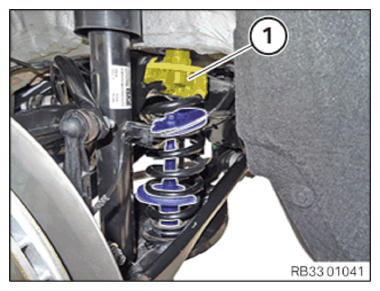

Feed in the spring pad at the top (1).

Courtesy of BMW OF NORTH AMERICA, INC.

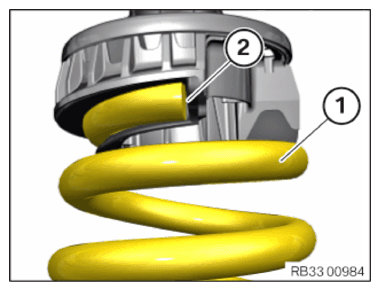

Position the upper spring pad on the coil spring (1) such that the coil spring end (2) is in form-fit contact with the upper spring pad.

Courtesy of BMW OF NORTH AMERICA, INC.

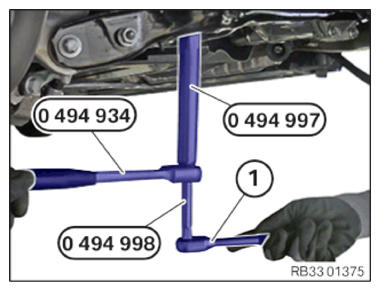

Slacken the coil spring with the special tools 0 494 997 (33 5 016) and 0 494 934 (33 5 020) . Provide counter support to the spindle using special tool 0 494 998 (33 5 017) and standard tool (1) in the process.

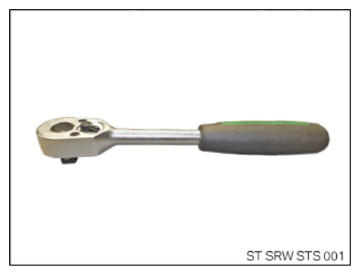

Standard tool: 3/8" reversible ratchet

3/8" reversible ratchet

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

3/8" reversible ratchet

Pay attention to the installation position when releasing the coil spring, correct if necessary.
Remove the special tools.
