Installing left and right brake ventilation duct
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the brake ventilation duct

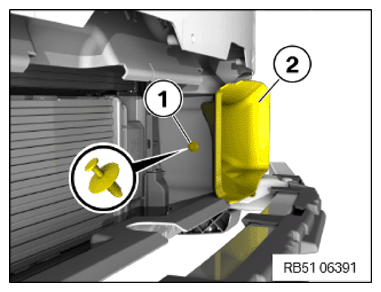

- Insert and position the brake ventilation duct (2).
- Fasten expanding rivet (1).

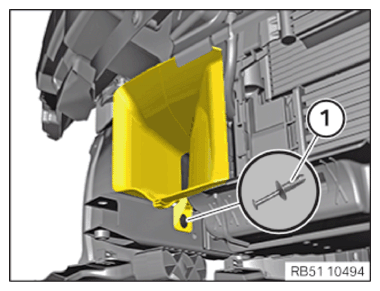

- Secure expanding rivet (1).NOTE: To provide a better overview: Schematic diagram without front wheel.

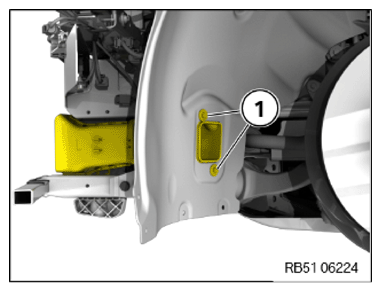

- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

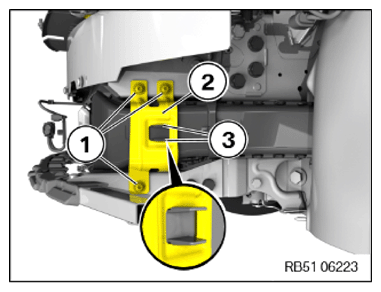

Brake ventilation duct on front wheel arch cover front section Hexagon screw for thermoplastic material Tightening torque 2.6 Nm - Position the vertical connection (2) and clip it into the detents (3).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Vertical connection to deformation element Flat-head screw M6x20 Tightening torque 11.8 Nm
