Install the kinematics at the bottom left

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Insert and position the kinematics (2).

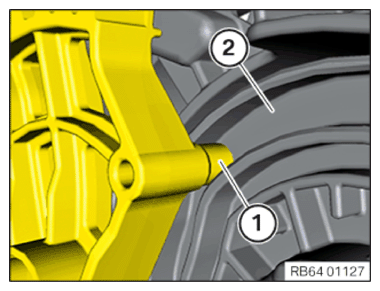

Ensure that the guide pin (1) is correctly positioned in the guide of the link disk (2).

Courtesy of BMW OF NORTH AMERICA, INC.

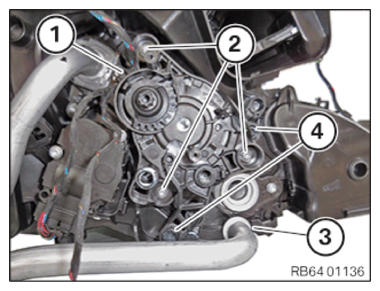

Position the kinematics.

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Heater/air conditioner
screw	Tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Engage the deflection lever (4).
Ensure that the deflection levers (4) audibly engage.
Position the coolant pipe (3).
Attach the cable in the wire guide (1).
