Install the cover of the steering assembly
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The underbody protection of the steering gear is removed.
NOTE:
TECHNICAL INFORMATION

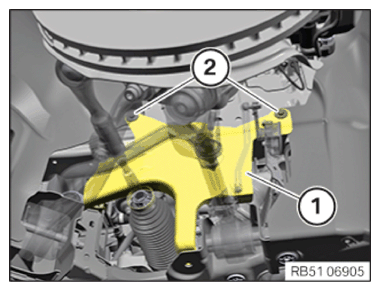

When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.
When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.
NOTE:
TECHNICAL INFORMATION

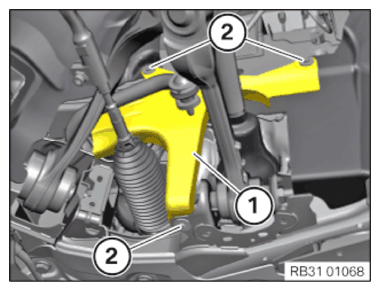

When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.
When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.
