Install the cover of the right camber control arm
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Install the cover of the camber control arm
- The installation location and direction of installation (1) must be noted.

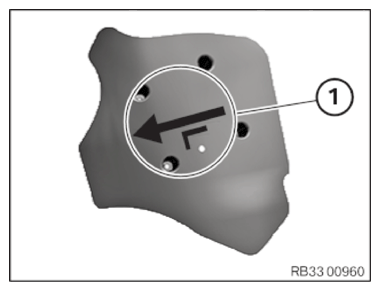

Direction of installation (1):
The arrow on the cover points in the driving direction.
Installation location:
- L = left
- R= right

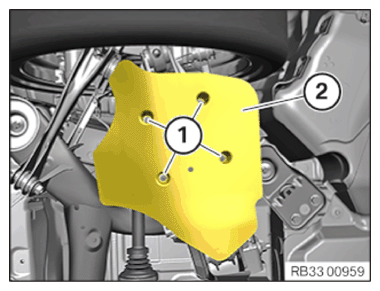

- Position cover (2) of the camber link on the camber link.
- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATION
Cover to camber control arm M6 Replace nuts. Tightening torque 6 Nm
