Install the connecting supports on the tunnel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

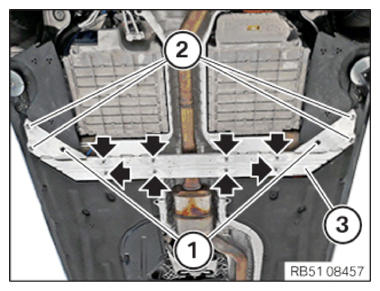

Insert and install the connecting support (3) on the tunnel.
Tighten down screws (2).

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Connecting support to tunnel
M8x25 screw	Tightening torque	20 Nm
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

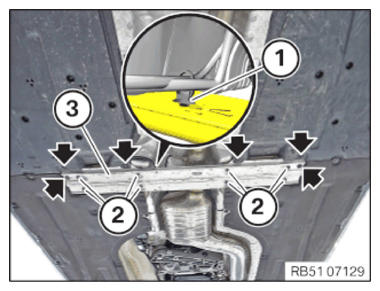

Secure the clamp (1).

Insert and install the connecting support (3) on the tunnel.

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Connecting support to tunnel
M8x25 screw	Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) and (2).

TIGHTENING TORQUE SPECIFICATION

Connecting support to tunnel
Hexagon screw for thermoplastic material	Tightening torque	3 Nm
Screw M 12x55	Tightening torque	68 Nm
