Install the KAFAS camera

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

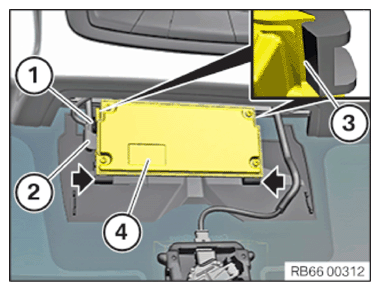

Install KAFAS camera (high version)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Feed in the KAFAS camera (4) in the guides (arrows) and engage it in the snap-in lugs (3).
Make sure that the KAFAS camera (4) is engaged correctly at the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

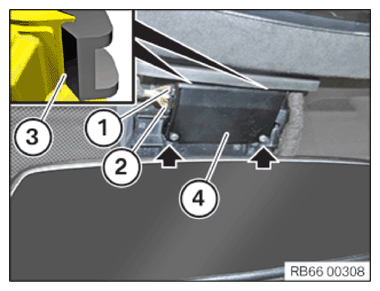

Install KAFAS camera (Mid variant)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Feed in KAFAS camera (4) on the guides (arrows) and engage the retaining lugs (3).
Make sure that the KAFAS camera (4) engages correctly in the snap-in lugs (3).
Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
