Install right door sill trim panel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the door sill trim panel

Check

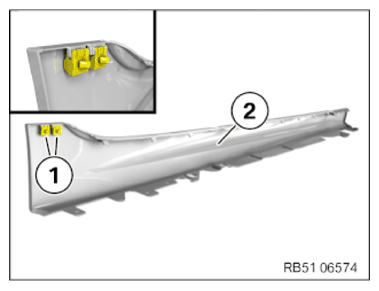

Check the holding clips (1) on the door sill trim panel (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The holding clips are damaged.

Measure
- Replace the holding clips.

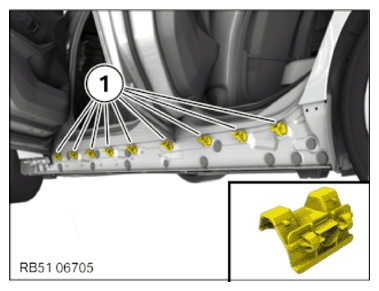

Check the holding clips (1) for damage; replace them if necessary.
If necessary, clip in the holding clips (1) into the body.

Courtesy of BMW OF NORTH AMERICA, INC.

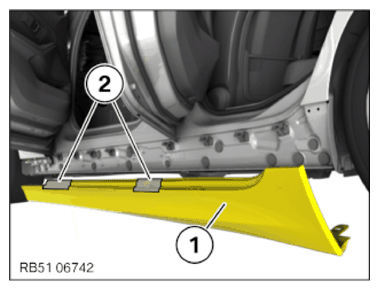

Mask the door sill trim panel (1) in the areas (2) with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Position door sill trim panel.

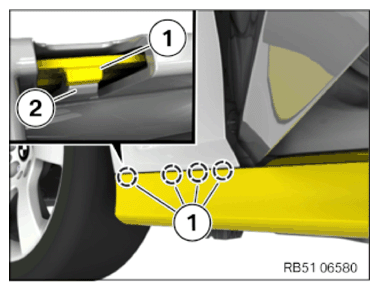

Clip in the door sill trim panel at the front with the detents (1) in the retaining strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

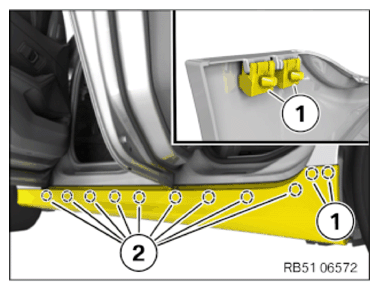

Clip in the door sill trim panel towards the rear into the holding clips (2).
Clip in the door sill trim panel with the clips (1) in the body.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).

TIGHTENING TORQUE SPECIFICATION

Door sill trim panel on body
Plastic nut with flange for coarse thread	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

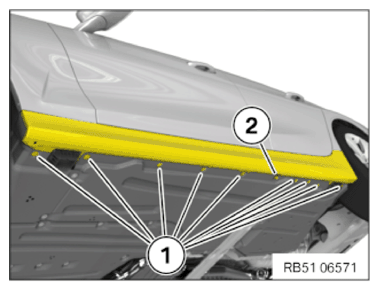

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Door sill trim panel on body
Plastic nut with flange for coarse thread	Tightening torque	2.5 Nm

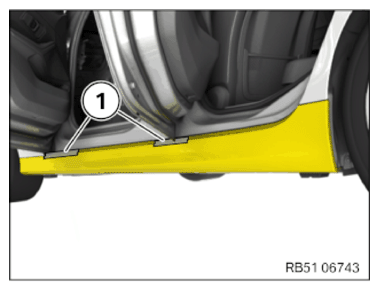

Remove the adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.
