Install rear section of the front right wheel arch cover

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the rear section of the front wheel arch cover

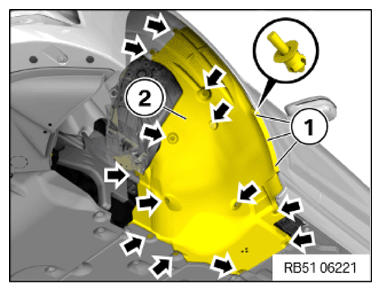

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Install the rear section of the front wheel arch cover (2).

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Wheel arch trim panel, front
Thermoplastic hexagon screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure expanding rivet (1).

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Install the rear section of the front wheel arch cover (2).

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Wheel arch trim panel, front
Thermoplastic hexagon screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure expanding rivet (1).
