Initializing the glass slide/tilt sunroof

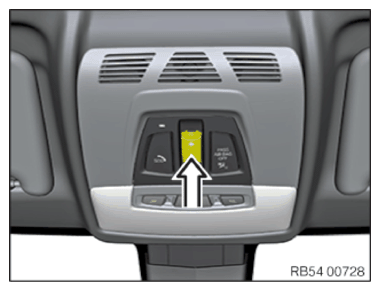

• Press and hold the switch in the "Vent Position" direction.

  The glass slide/tilt sunroof shifts to vent position.

• In the event of a delayed start or sudden stop of the glass slide/tilt sunroof, continue operating the switch in the "Vent Position" direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Continue to operate the switch during the entire ABL.

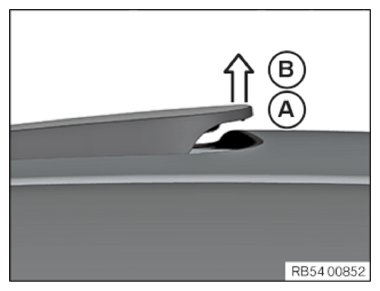

• After having reached the vent position (A) continue to operate the switch for approximately 30 s (initialization starts).
  • The glass slide/tilt sunroof shifts from vent position (A) toward position (B).
  • Screen (sliding headliner) fully closes.
  • Screen (sliding headliner) fully opens.
  • Glass slide/tilt sunroof shifts to "closed" position.
  • The glass slide/tilt sunroof shifts to the "Open" position and immediately returns to the "Closed" position.
  • After a brief pause, the screen fully closes.

  The initialization is completed once the glass slide/tilt sunroof and the screen have completely closed.

• Release the switch.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  If the switch is released in the meantime, repeat the initialization. Following successful initialization, the corresponding messages in the Check Control and the control display extinguish.
• Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).

Prerequisites for initializing the sliding/tilting/panoramic glass sunroof

• The following prerequisites must be met for error-free initialization

  Vehicle interior temperature	15°C-30°C
  On-board voltage	12 V - 15 V
  Vehicle condition	The vehicle is not standing on its own wheels.
  	Vehicle is in a horizontal position.
  	- Speed 0 km/h (vehicle must not roll)
  	- Remote control is in the vehicle
  	- Terminal 15 is switched on or the vehicle is in the PFW state living
  Operating point	- FZD button
  	- Diagnostic function: "Initialize sliding/tilting sunroof"
  Miscellaneous	No other work may be carried out on the vehicle during initialization in order to avoid impacts or vibrations.

  NOTE: TECHNICAL INFORMATION
  The following prerequisites are the basis for a correct initialization and must be strictly observed.
  For additional information see: INITIALIZING THE GLASS SLIDE/TILT SUNROOF .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press and hold the switch in the "Vent Position" direction.

  The glass slide/tilt sunroof shifts to vent position.

• In the event of a delayed start or sudden stop of the glass slide/tilt sunroof, continue to press and hold the switch in the "Vent Position" direction.
• Continue to keep the switch pressed during the entire test module.
• After reaching vent position (A), continue to press and hold the switch for about 30 s.

  The initialization starts:

  • The glass slide/tilt sunroof shifts from vent position (A) toward position (B).
  • Screen (sliding headliner) fully closes.
  • Screen (sliding headliner) fully opens.
  • Glass slide/tilt sunroof shifts to "closed" position.
  • The glass slide/tilt sunroof shifts to the "Open" position and immediately returns to the "Closed" position.
  • After a brief pause, the screen fully closes.

  The initialization is completed once the glass slide/tilt sunroof and the screen have completely closed.

• Release the switch.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  If the switch is released in the meantime, repeat the initialization. Following successful initialization, the corresponding messages in the Check Control and the control display extinguish.
• Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).
